INCO 157.1 A Perforated Liner Tray R3T6

cubierta,fachada
  • Acoustic industrial roof and wall systems.
  • Cover width: 600 mm
  • Profile depth: 157 mm
  • R3T6 perforation.

Roofing

Geometry

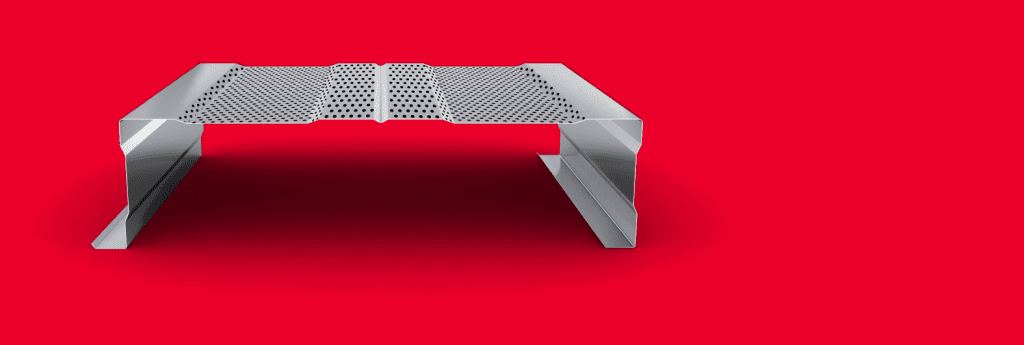

The INCO 157.1 A Liner Tray is used as a support element in built-up roof and facades systems. It is manufactured from micro-perforated steel sheet, with perforations in the central area that improve sound absorption. It is commonly used in industrial buildings, shopping centres, sports facilities and other constructions where enhanced acoustic comfort is required.

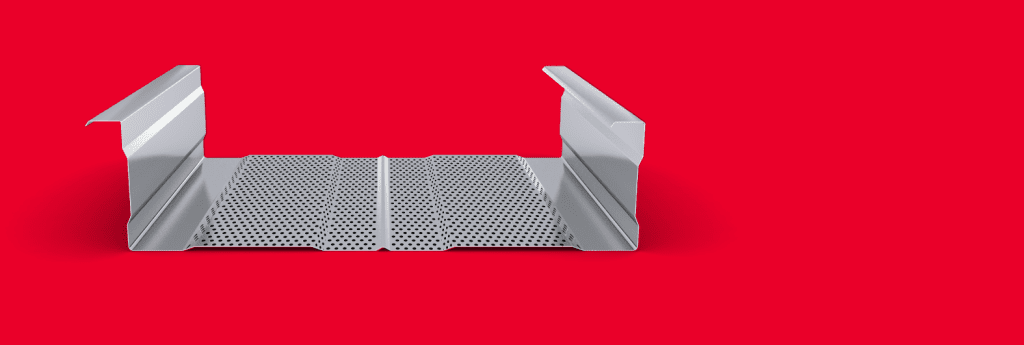

It offers excellent strength within metal cladding systems, with an effective width of 600 mm and a rib height of 157 mm. The tray is fixed on frames and this allows the insulation to be accommodated and the external cladding profile to be fixed to the ribs of the tray, while on the inside it provides a flat finished surface.

It is available in both galvanized steel sheet and a wide range of pre-painted finishes, adapting to the aesthetic and functional requirements of each project. If you require a non-perforated version, please refer to the INCO 157.1 Liner Tray profile.

  • Industrial: hangars, warehouses and production centers
  • Logistics: warehouses and distribution centers
  • Commercial: canopies and shopping centers
  • Public: schools, markets and hospitals
  • Sports: stands, sports courts and pavilions
  • Agricultural: stables, farms and sheds
  • Min/max manufacturing length: 6 / 24 m
  • Thickness range: 0,70 | 0,75 | 0,80 | 1,00 | 1,20| 1,50 mm
  • Minimum order: 250 m²
  • Package weight: 1.500 – 2.000 kg
  • R3T6 perforation
  • Color: White RAL 9003. Others on request
  • Galvanized steel (Z) and Magnelis (ZM)
  • Standard painted steel (15-25 µm)
  • High-performance steel (35-200 µm)

Industrial roofing system

Deck roofing system

Industrial facade system

INCO 157.1 A DWG File

DOP Roofs and Facades All Profiles INCOPERFIL

DOP Roofs and Facades All Profiles INCOPERFIL

DOP Roofs and Facades All Profiles INCOPERFIL

Facade Profiles Catalog INCOPERFIL

Roof Decking Profiles Catalog INCOPERFIL

Facade Profiles Catalog INCOPERFIL
