Home / Projects / Curved Roofing in a football stands in the municipal sports complex in Carbajosa de la Sagrada (Salamanca) -Spain

Curved Roofing in a football stands in the municipal sports complex in Carbajosa de la Sagrada (Salamanca) -Spain

Building type: Sports and multipurpose facilities

Country: España

Province: Salamanca

Year of construction: 2014

Amount: 200 m2

Work: Sport Stand Roofing

Finish: Granite 25 pre-painted steel

Related systems:

Related products:

The stands of the field of the municipal installations have been protected with a self-supporting system roofing by INCOPERFIL.

The municipality of Carbajosa de la Sagrada in Salamanca has invested € 120,000 for the expansion of municipal sports facilities. In building the football field bleachers were created 340 covered seats.

The covering was made with freestanding curved system. The main advantages of this system are indisputable: the good aesthetic finish combined with the speed of assembly, its low price and high durability makes this system ideal for this type of application.

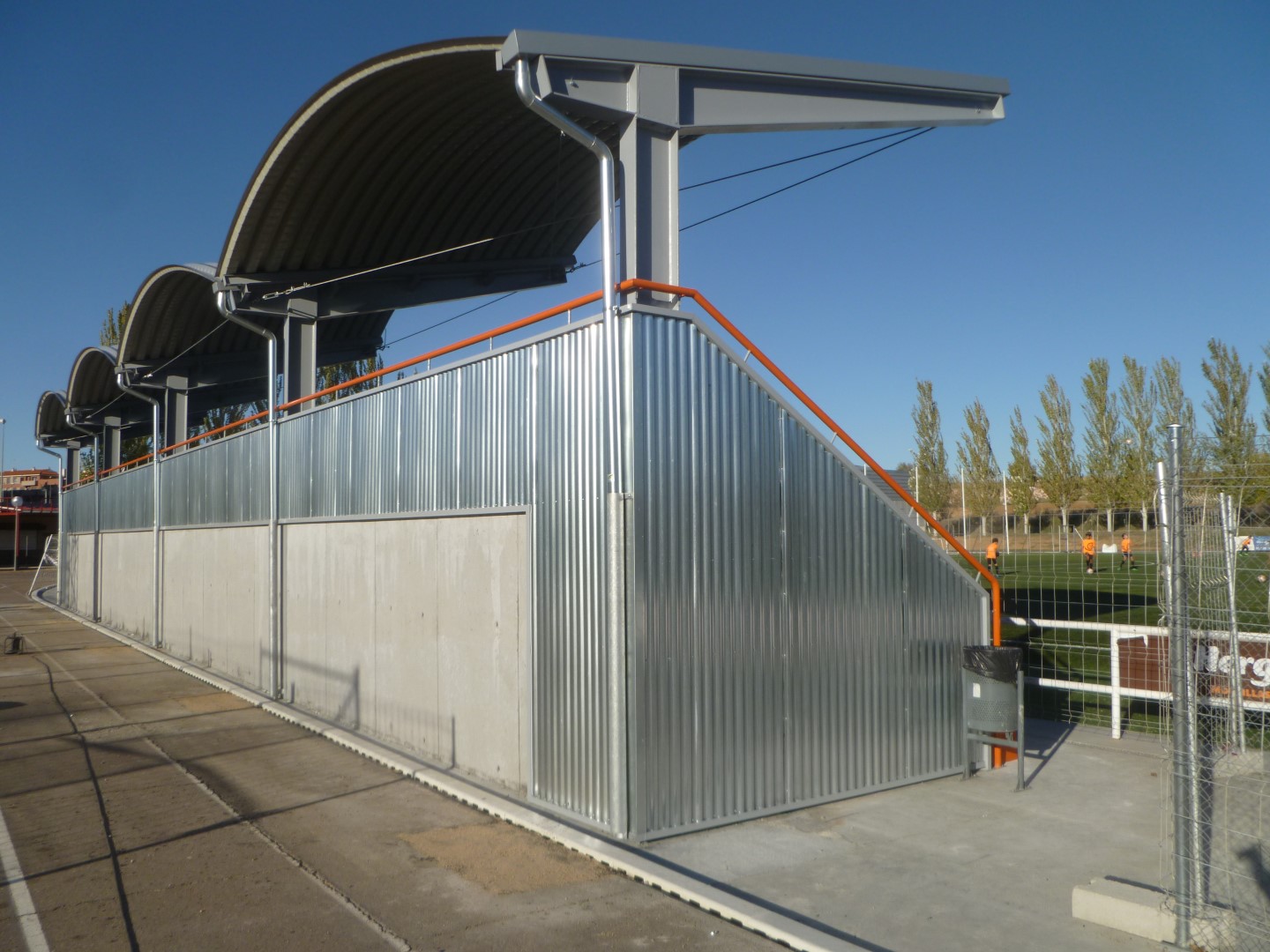

Curved Roofing in a football stands in the municipal sports complex in Carbajosa de la Sagrada (Salamanca) -Spain

The profile INCO 70.4 Curved Self-supporting consists of a Z225 zinc protection and lacquered with 25 micron polyester that guarantees no corrosion of the steel.
