Freestanding sandwich curved roofing to the new Iberian archaeological site in Iniesta (Cuenca) – Spain

Building type: Cultural center

Country: España

Province: Cuenca

Year of construction: 2015

Work: Solution composed of profile INCO 70.4 Curved Self-supporting prepainted in RAL 9003 white color, free span 8 meters. Hat purlin 40 mm, insulation thickness 80 mm and upper corrugated sheet INCO 30.5

Finish: Granite 25 pre-painted steel

Related systems:

Related products:

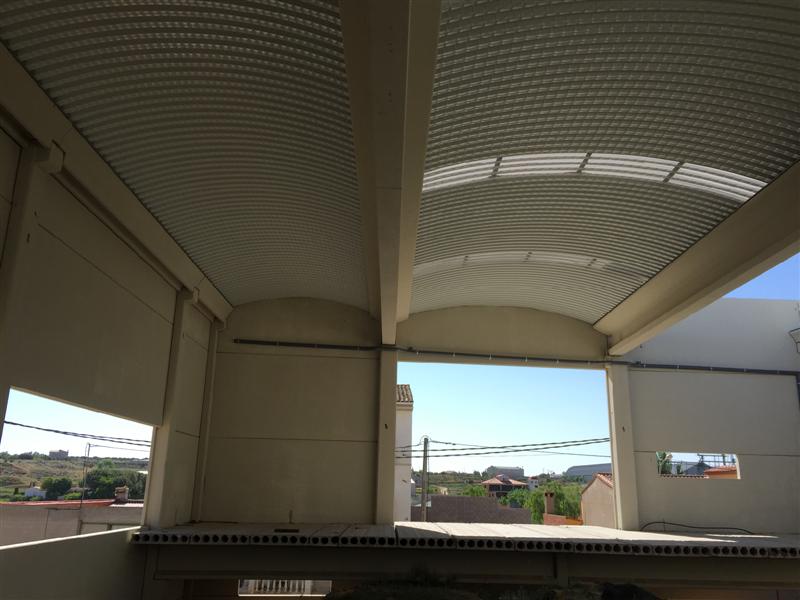

Self-supporting system curved sandwich on precast concrete structure for closing the museum - excavation in Iniesta.

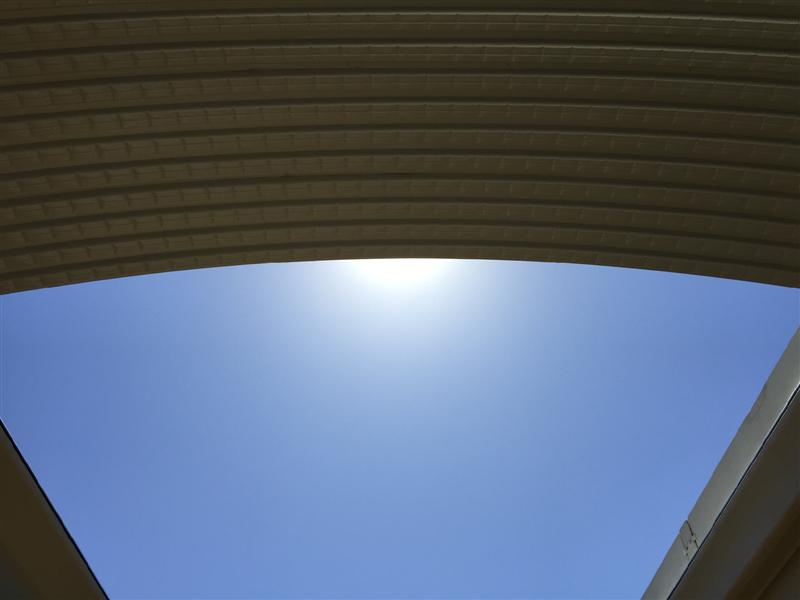

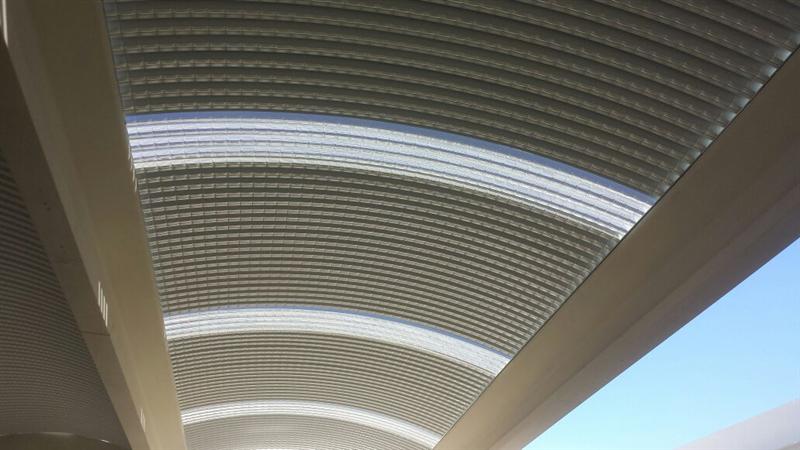

The remains of an Iberian settlement in Iniesta have been protected with a concrete structure prefabricated system combined with freestanding curved roof sandwich. This system gives the digging a good aesthetic finish as well as a good thermal comfort to visitors scholars and experts in the field.

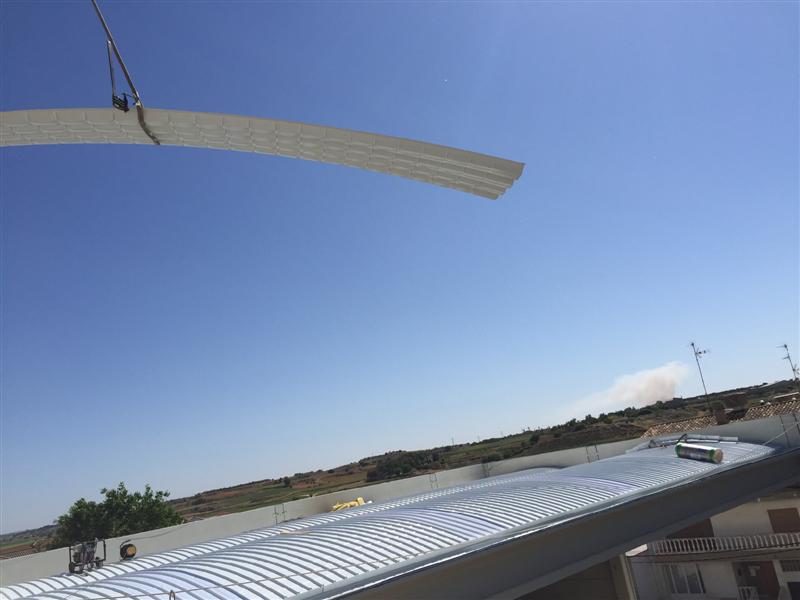

This system is also characterized by its speed of assembly, since the cover system is very simple and is made as to the structure.
